Panels and Interface

All MotionMaster 3D tools live in the 3D Viewport sidebar (N panel), ordered from top to bottom as one workflow. This page shows where everything is and links to the detailed page for each panel.

How to use it

  1. 1 Press N in the 3D Viewport and open the MotionMaster 3D tab.
  2. 2 Expand the panel you need; every panel starts collapsed.
  3. 3 Open Extra Settings inside a panel for advanced options.
  4. 4 Watch the (Progress) panel at the top while a job runs.

Every Panel at a Glance

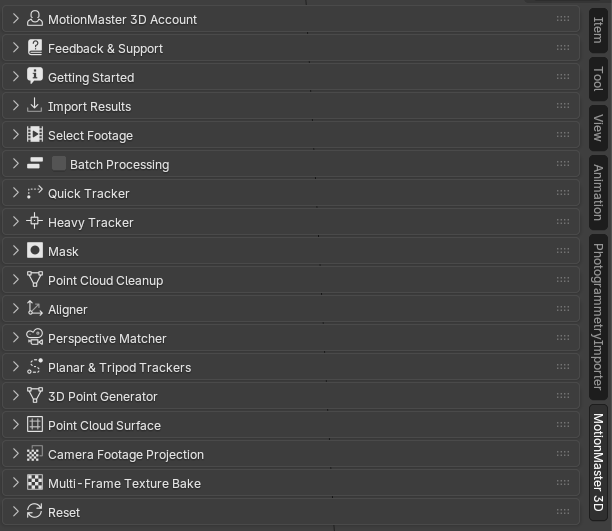

All panels live in the MotionMaster 3D tab of the 3D Viewport sidebar and start collapsed, so a fresh install shows a clean list of headers. They are ordered as one workflow from top to bottom, with Reset always last. Advanced options sit in collapsible sections inside each panel, such as Advanced Parameters or Extra Settings.

(Progress) Appears at the top while a job runs and shows its stage, with a Cancel button for Heavy, Dense, Mesh and batch jobs (Max).MotionMaster 3D Account Log in to activate the machine, refresh your license and choose email notifications.Feedback & Support Opens the feedback form for bug reports, feature requests and questions.Getting Started A built-in four-step guide to your first track, with a reminder about parallax.Import Results Scan a result folder and import Quick, Heavy, Tripod, Planar, Dense or Mesh results into the scene.Select Footage Choose the image sequence to work on, and convert or downscale video.Batch Processing Queue many clips and run conversion, tracking and mesh generation on all of them.Quick Tracker Real-time camera tracking with a live preview, best for fast tests when the camera data is known.Heavy Tracker The main automatic camera solve, plus lens calibration, STMaps, dense point clouds and mesh generation.Mask SAM2 AI mask layers and animatable polygon masks, composed into one mask for Heavy Tracking.Point Cloud Cleanup Remove floating points and noise from point clouds with statistical outlier removal.Aligner Snap the solve to the Blender floor, flip it, and convert camera motion into object motion.Perspective Matcher Align a Blender camera to a still reference image with perspective guide lines.Planar & Tripod Trackers Tripod mode solves rotation-only shots; Planar mode opens the Track Workspace for flat surfaces. Max.3D Point Generator Triangulate a real 3D point by clicking the same feature on two frames in Camera View. Max.Point Cloud Surface Build an editable surface from a point cloud or triangulated points. Max.Camera Footage Projection Project the camera background footage live onto a surface. Max.Multi-Frame Texture Bake Bake footage from many camera positions into one permanent texture. Max.Reset Clear generated results from a sequence folder while keeping the source frames.

Technical notes

Version 1.0.7 added the Planar & Tripod Trackers, 3D Point Generator, Point Cloud Surface, Camera Footage Projection and Multi-Frame Texture Bake panels after the Aligner and Perspective Matcher. These are Max features.

Docs Installation

MotionMaster 3D installs like any Blender add-on from a zip file, followed by four one-time setup steps in the add-on preferences: Visual C++ runtimes, Python dependencies, the Photogrammetry Importer and logging in with your account.

Docs Your First Camera Track

The shortest path from a video file to a solved, aligned Blender camera. It uses the default settings that work for most clean handheld shots and points to the detailed pages for everything else.

Docs MotionMaster 3D 1.0.7

Version 1.0.7 is the largest MotionMaster 3D update so far. It adds a Planar Tracker with a dedicated Track Workspace, a rotation-only Tripod Tracker, a complete lens distortion, calibration, and STMap workflow, a two-view 3D Point Generator, point-cloud surface reconstruction, live camera projection, multi-frame texture baking, and a real Cancel button for running jobs. MotionMaster 3D now covers planar, tripod, and fully automatic camera tracking inside Blender.
